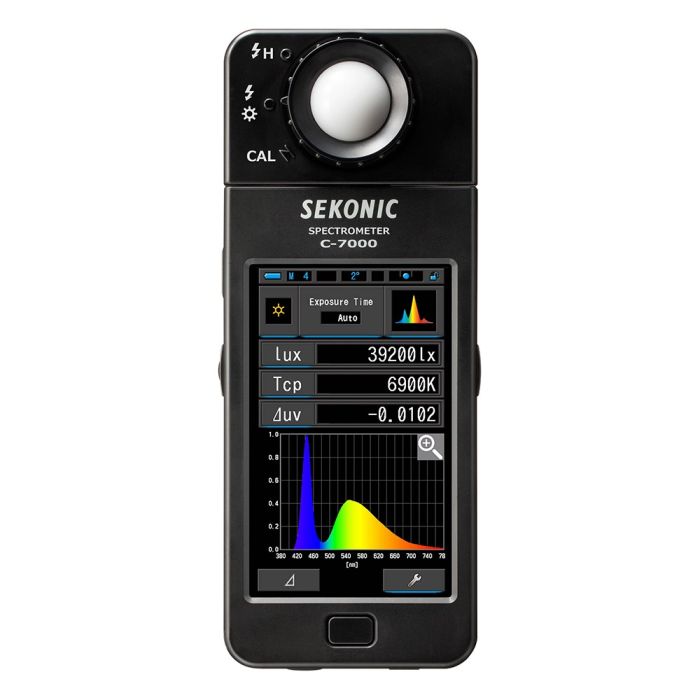

Sekonic c7000

The Sekonic Spectrometer C-7000 Color Meter is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic's CMOS linear image sensor design and software, the C-7000 can measure every light source (LED, HMI, fluorescent, natural light, and electronic flash spectrum) with remarkable precision and data feedback.

With the overwhelming popularity of new light sources such as advanced LED and Organic Electroluminescence, understanding, managing, and controlling these sophisticated illumination systems is essential. The C-7000 offers advanced precision lighting control for the Photo, Video, and Cine industries, providing valuable insight into light fixture manufacturing, quality control, and more.

Information screens such as Correlated Color Temperature, Illuminance, Color Rendering Index (CRI), Tristimulus Value, Chromaticity Coordinates (for CIE1931/CIE1964 & CIE1976 standards), Peak Wavelength, Excitation Purity, and Photosynthetic Photon Flux Density, and more are displayed on the 4.3" color touch screen. The enhanced measurement data and display modes provide essential data for quality control in various lighting industries, including medical, agricultural, and safety standards for public facilities.

The C-7000 is also computer-friendly. Users can connect it to a Windows-based PC to make settings via the C-7000 Utility (included), outputting CSV files in 1 nm wavelength increments from 380 to 780 nm. The software allows for the output of spectral distribution graphs, CRI, and chromaticity diagrams for CIE 1931(1964) and CIE1976 color spaces.

Highlights of the Sekonic C-7000 Spectrometer Color Meter:

• Measures LED, HMI, Fluorescent, Tungsten, Natural Light, and Flash in 1 nm wavelength increments from 380 to 780 nm
• Stand-alone spectrometer with flash light sync cord connection or cordless mode
• User-friendly design with a 270-degree swivel head, dark calibration without cap, large 4.3" color touch panel LCD, and custom functions
• Wide measurement range of Color Temperature (1,563 to 100,000K) and illumination (1 to 200,000 lux in ambient light, 20 to 20,500 lux·s in flash light)
• Various display modes: Text, Spectrum Graph, Spectrum Comparison Mode, CRI Mode, CIE1931 (CIE1964) Mode, CIE1976 Mode, and more
• Measures Kelvin (K), Illuminance (lux), CRI (Ra, R1-R15), Deviation (⊿uv), Tristimulus values (XYZ), Chromaticity Coordinate (xyz/u'v'), Dominant Wavelength (λd), Peak Wavelength (λp), Excitation Purity (Pe), PPFD (Photosynthetic Photon Flux Density)
• Stores up to 999 data measurements with memory function for comparison and tracking over time
• C-7000 Utility software for easy settings, firmware updates, and exporting spectral data at 1 nm increments in CSV format
• Export of spectrum distribution graphs, CIE1931 (1964), CIE1976 diagrams, and CRI graph bars in JPEG/BMP/PNG format are also available
