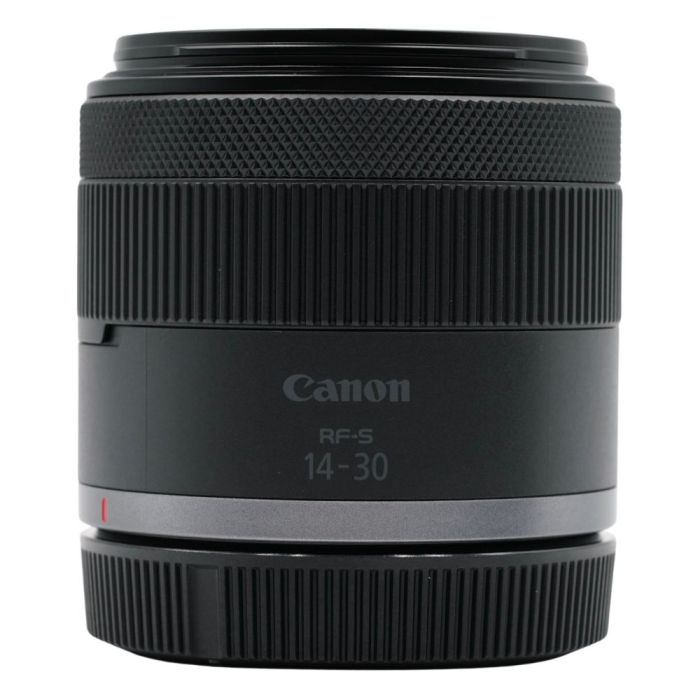

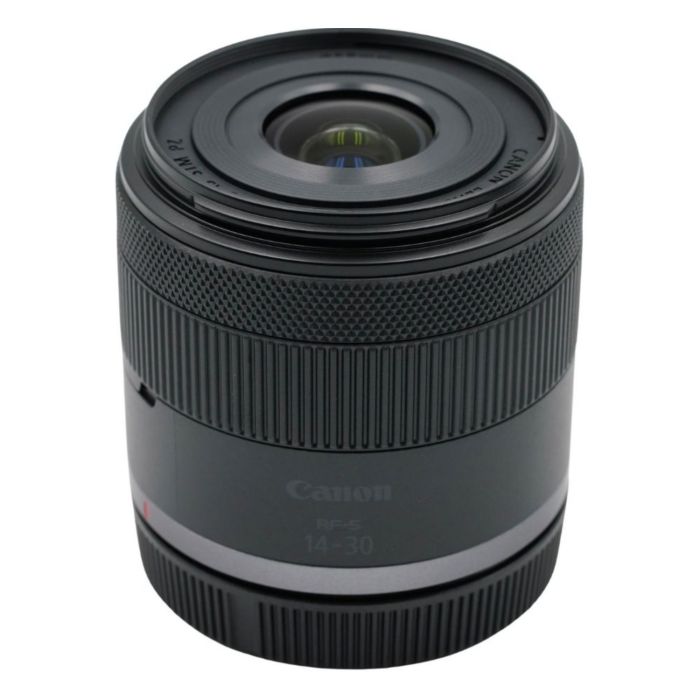

Canon RF-S 14-30mm f/4-6.3 IS STM PZ Lens (White Box)
Quick Overview
| Angle Of View | Horizontal: 78°05' - 41°25', Vertical: 56°40' - 28°15', Diagonal: 88°30' - 48°50’ |
| Aperture Blades | 7 |
| Autofocus Motor | STM |
| Colour | Black |
| Filter Thread [mm] | 58 |
| Focal Length ~ Tele [mm] | 30.0 |
| Focal Length ~ Wide [mm] | 14.0 |
| Hood Model | EW-63C |
| Lens Elements | 10 |
| Lens Groups | 9 |
| Lens Mount | Canon RF-Mount |
| Lens Type | Wide-Angle Zoom |
| Max Aperture ~ Tele | 6.3 |
| Max Aperture ~ Wide | 4 |
| Minimum Aperture | 22-36 |
| Minimum Focus Distance [m] | 0.15 |
| Size | 69.6 x 62 mm |
| Weight [g] | 181.00 |
The RF-S 14-30mm f4-6.3 IS STM PZ is the first lens in Canon’s RF-S lineup to feature an internal Power Zoom system, offering 15 selectable speeds for electronically controlled focal length transitions. Its non-extending design maintains balance while zooming, maximising stability on gimbals and video rigs. Launched as Canon's R50 V kit lens, it covers a 14–30mm range with 5 stops of Optical IS, STM autofocus, and UD/PMo aspherical elements.
Highlights of the Canon RF-S 14-30mm f4-6.3 IS STM PZ Lens:
- Launched as a kit lens for the Canon EOS R50 V
- 14–30mm ultra-wide to standard focal range
- Internal Power Zoom with 15 adjustable speed levels
- Non-extending design for consistent balance on rigs
- Optimised for video with smooth focal length transitions
- 5 stops Optical Image Stabilisation for handheld shooting
- Up to 7.5 stops of stabilisation when paired with IBIS
- STM autofocus for quiet and accurate focus tracking
- Combined control and focus ring for quick setting adjustments
- Minimum focusing distance of 15cm for close-up detail
- 2 PMo aspherical and 1 UD element reduce aberrations
- Compact and lightweight build at just 181g
- Canon RF-S 14-30mm f/4-6.3 IS STM PZ Lens
- Front Lens Cap
- Rear Lens Cap
